Product Introduction
M55342K06B309ERT5V
- Part Number
- M55342K06B309ERT5V
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 309K OHM 1 0.15W 0705
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-55342, RM0705
- Quantity
- 22pcs Stock Available.

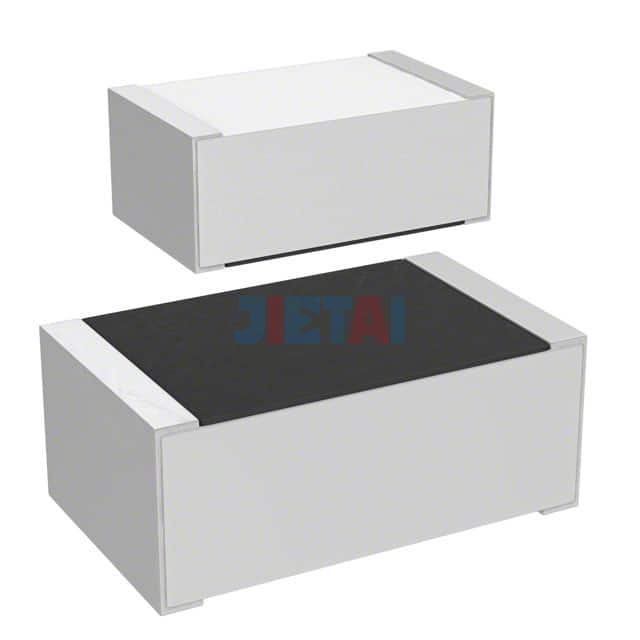

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M55342K06B309ERT5V |
| Datasheet | M55342K06B309ERT5V datasheet |
| Description | RES SMD 309K OHM 1 0.15W 0705 |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM0705 |
| Part Status | Active |
| Resistance | 309 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.15W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0705 |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
