Product Introduction
LQR2G392MSEG
- Part Number
- LQR2G392MSEG
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 3900UF 20 400V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQR
- Quantity
- 21pcs Stock Available.

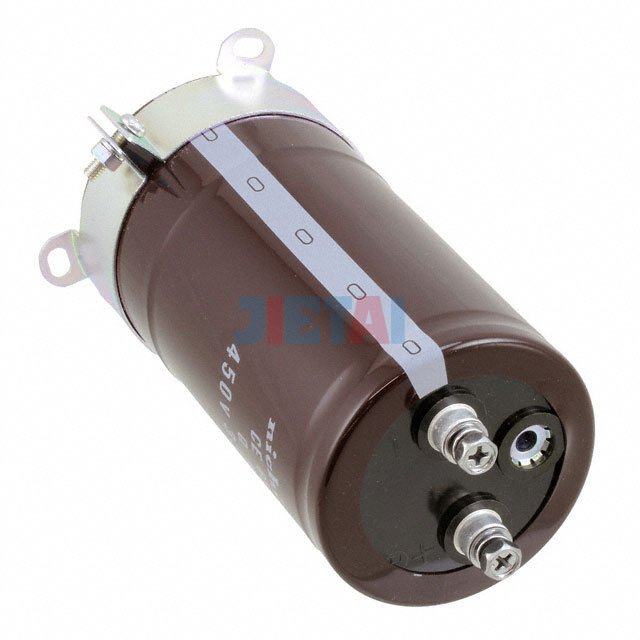

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQR2G392MSEG |
| Datasheet | LQR2G392MSEG datasheet |
| Description | CAP ALUM 3900UF 20 400V SCREW |
| Manufacturer | Nichicon |
| Series | LQR |
| Part Status | Active |
| Capacitance | 3900µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16A @ 120Hz |
| Ripple Current @ High Frequency | 22.4A @ 10kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
