Product Introduction
LPC2138FBD64/01,11
- Part Number
- LPC2138FBD64/01,11
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 32BIT 512KB FLASH 64LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LPC2100
- Quantity
- 1600pcs Stock Available.

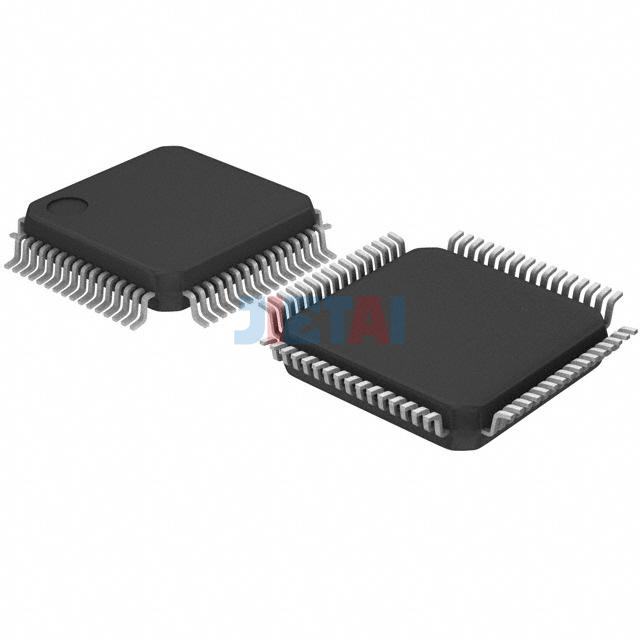

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LPC2138FBD64/01,11 |
| Datasheet | LPC2138FBD64/01,11 datasheet |
| Description | IC MCU 32BIT 512KB FLASH 64LQFP |
| Manufacturer | NXP USA Inc. |
| Series | LPC2100 |
| Part Status | Active |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 60MHz |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 64-LQFP |
| Base Part Number | 64-LQFP (10x10) |
