Product Introduction
TPIC2101N
- Part Number
- TPIC2101N
- Manufacturer/Brand
- Texas Instruments
- Description
- IC MOTOR DRIVER 8V-16V 14DIP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6482pcs Stock Available.

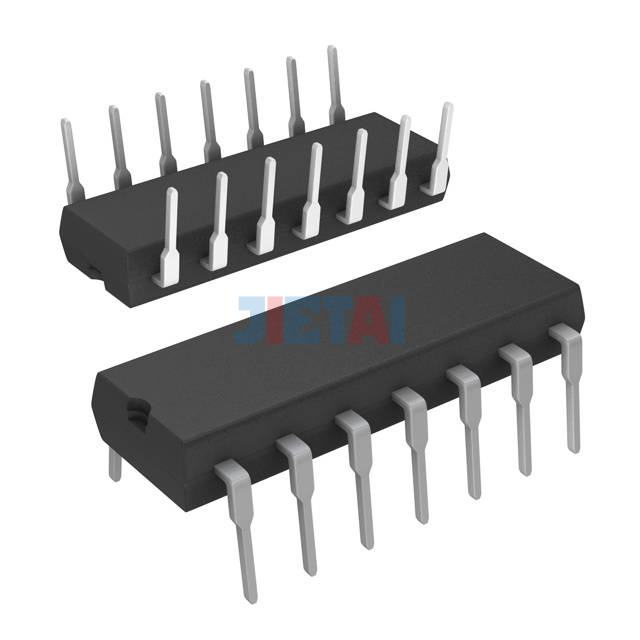

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TPIC2101N |
| Description | IC MOTOR DRIVER 8V-16V 14DIP |
| Manufacturer | Texas Instruments |
| Series | - |
| Part Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Low Side |
| Interface | Parallel |
| Technology | - |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | - |
| Voltage - Supply | 8V ~ 16V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
