Product Introduction
860240675006
- Part Number
- 860240675006
- Manufacturer/Brand
- Wurth Electronics Inc.
- Description
- CAP 68 UF 20 50 V
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- WCAP-AT1H
- Quantity
- 24pcs Stock Available.

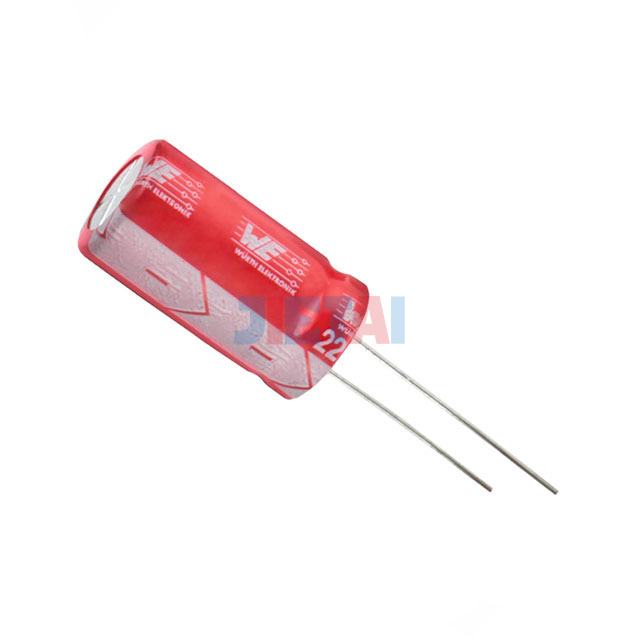

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 860240675006 |
| Description | CAP 68 UF 20 50 V |
| Manufacturer | Wurth Electronics Inc. |
| Series | WCAP-AT1H |
| Part Status | Active |
| Capacitance | 68µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 178mA @ 120Hz |
| Ripple Current @ High Frequency | 356mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
