Product Introduction
PTGL9SAS7R6K6B51A0
- Part Number
- PTGL9SAS7R6K6B51A0
- Manufacturer/Brand
- Murata Electronics North America
- Description
- PTC RESET FUSE 7.6OHM DISC
- Category
- PTC Resettable Fuses
- RoHs Status
- Lead free / RoHS Compliant
- Series
- POSISTOR®, PTGL
- Quantity
- 11pcs Stock Available.

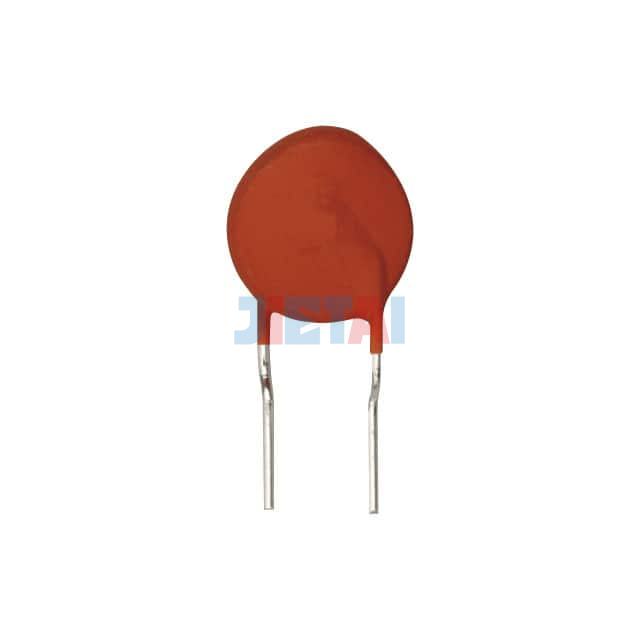

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PTGL9SAS7R6K6B51A0 |
| Datasheet | PTGL9SAS7R6K6B51A0 datasheet |
| Description | PTC RESET FUSE 7.6OHM DISC |
| Manufacturer | Murata Electronics North America |
| Series | POSISTOR®, PTGL |
| Part Status | Active |
| Type | Ceramic |
| Voltage - Max | 140V |
| Current - Max | 2.2A |
| Current - Hold (Ih) (Max) | 287mA |
| Current - Trip (It) | 382mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 7.6 Ohms |
| Operating Temperature | -30°C ~ 125°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.366" Dia x 0.177" T (9.30mm x 4.50mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
