Product Introduction
MMT-112-01-T-DH-P-TR
- Part Number
- MMT-112-01-T-DH-P-TR
- Manufacturer/Brand
- Samtec Inc.
- Description
- CONN HEADER SMD R/A 24POS 2MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MMT
- Quantity
- 3pcs Stock Available.

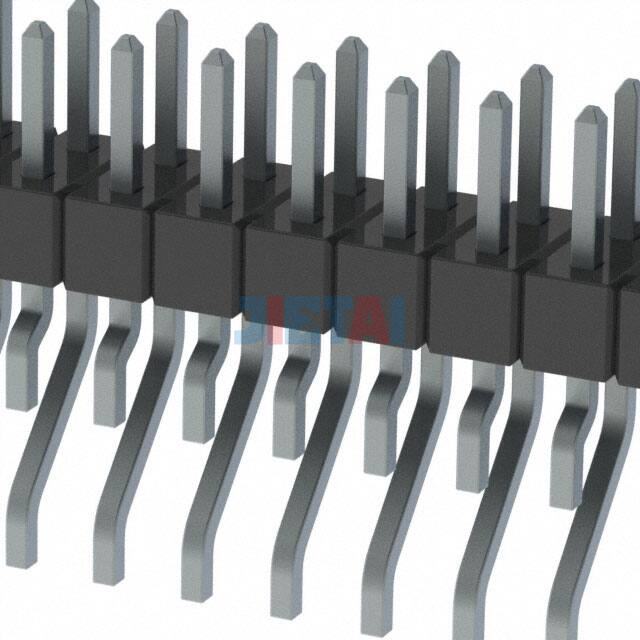

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MMT-112-01-T-DH-P-TR |
| Datasheet | MMT-112-01-T-DH-P-TR datasheet |
| Description | CONN HEADER SMD R/A 24POS 2MM |
| Manufacturer | Samtec Inc. |
| Series | MMT |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.126" (3.20mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.157" (4.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | 3A |
| Voltage Rating | - |
