Product Introduction
MC74AC138DTR2
- Part Number
- MC74AC138DTR2
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC DECODER/DEMUX 18 16-TSSOP
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 74AC
- Quantity
- 565pcs Stock Available.

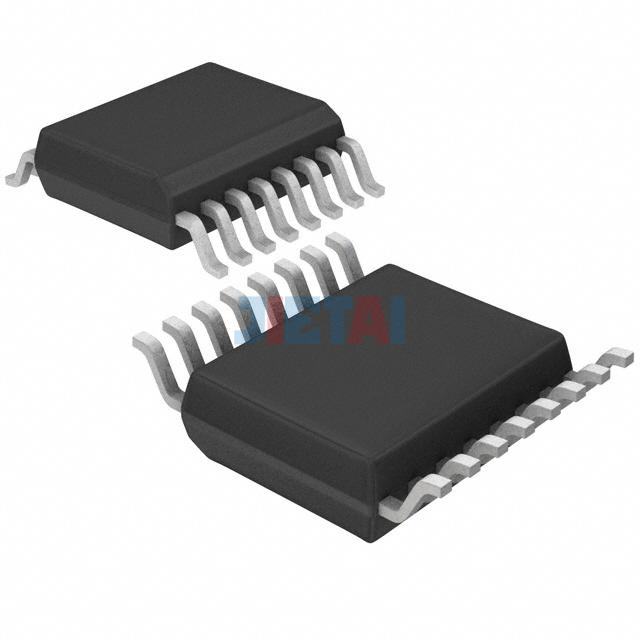

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC74AC138DTR2 |
| Datasheet | MC74AC138DTR2 datasheet |
| Description | IC DECODER/DEMUX 18 16-TSSOP |
| Manufacturer | ON Semiconductor |
| Series | 74AC |
| Part Status | Obsolete |
| Type | Decoder/Demultiplexer |
| Circuit | 1 x 3:8 |
| Independent Circuits | 1 |
| Current - Output High, Low | 24mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
