Product Introduction
MAX8790ETP+T
- Part Number
- MAX8790ETP+T
- Manufacturer/Brand
- Maxim Integrated
- Description
- IC LED DRIVER CTRLR DIM 20TQFN
- Category
- PMIC - LED Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6195pcs Stock Available.

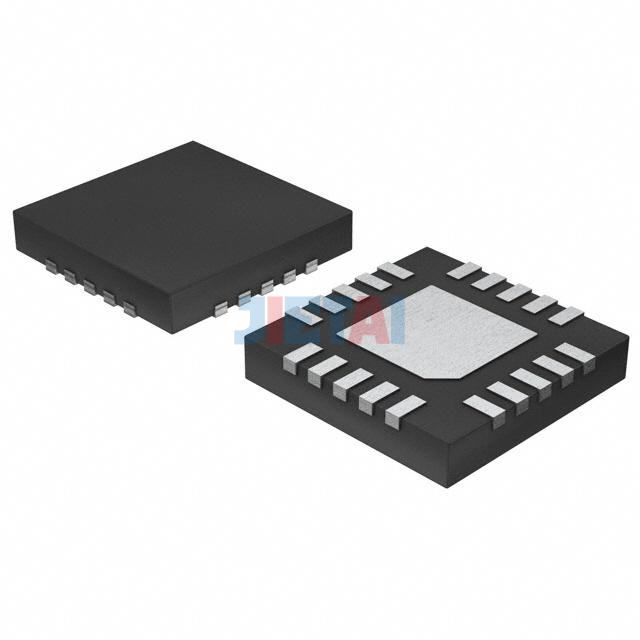

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MAX8790ETP+T |
| Datasheet | MAX8790ETP+T datasheet |
| Description | IC LED DRIVER CTRLR DIM 20TQFN |
| Manufacturer | Maxim Integrated |
| Series | - |
| Part Status | Not For New Designs |
| Type | DC DC Controller |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 26V |
| Voltage - Output | - |
| Current - Output / Channel | 25mA |
| Frequency | 1MHz |
| Dimming | Analog, PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4x4) |
