Product Introduction
ULD1H470MED
- Part Number
- ULD1H470MED
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 47UF 20 50V THRU HOLE
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ULD
- Quantity
- 1269pcs Stock Available.

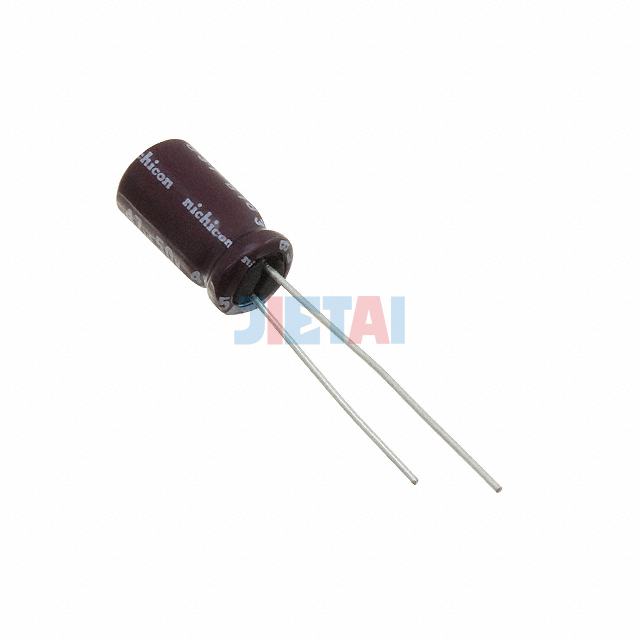

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ULD1H470MED |
| Datasheet | ULD1H470MED datasheet |
| Description | CAP ALUM 47UF 20 50V THRU HOLE |
| Manufacturer | Nichicon |
| Series | ULD |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 133mA @ 120Hz |
| Ripple Current @ High Frequency | 190mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
