Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UVZ1C102MPD
Product Introduction

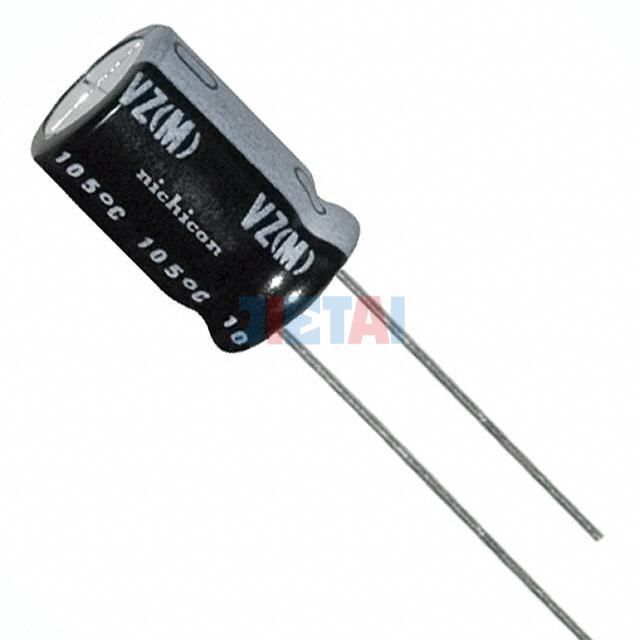

UVZ1C102MPD
- Part Number
- UVZ1C102MPD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 1000UF 20 16V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UVZ
- Quantity
- 9770pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UVZ1C102MPD |
| Datasheet | UVZ1C102MPD datasheet |
| Description | CAP ALUM 1000UF 20 16V RADIAL |
| Manufacturer | Nichicon |
| Series | UVZ |
| Part Status | Active |
| Capacitance | 1000µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560mA @ 120Hz |
| Ripple Current @ High Frequency | 644mA @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
