Product Introduction
DF2339EVFC25V
- Part Number
- DF2339EVFC25V
- Manufacturer/Brand
- Renesas Electronics America
- Description
- IC MCU 16BIT 384KB FLASH 144QFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- H8® H8S/2300
- Quantity
- 8357pcs Stock Available.

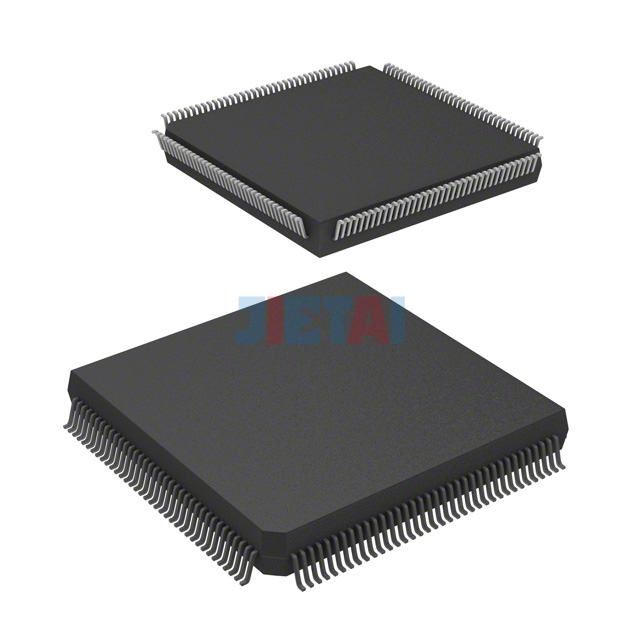

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DF2339EVFC25V |
| Datasheet | DF2339EVFC25V datasheet |
| Description | IC MCU 16BIT 384KB FLASH 144QFP |
| Manufacturer | Renesas Electronics America |
| Series | H8® H8S/2300 |
| Part Status | Obsolete |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 12x10b; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-BFQFP |
| Base Part Number | 144-QFP (20x20) |
