Product Introduction

MPIA4015V2-R22-R

Part Number
MPIA4015V2-R22-R
Manufacturer/Brand
Eaton - Electronics Division
Description
FIXED IND 220NH 11A 7.5 MOHM SMD
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
MPIA40-V2
Quantity
13pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

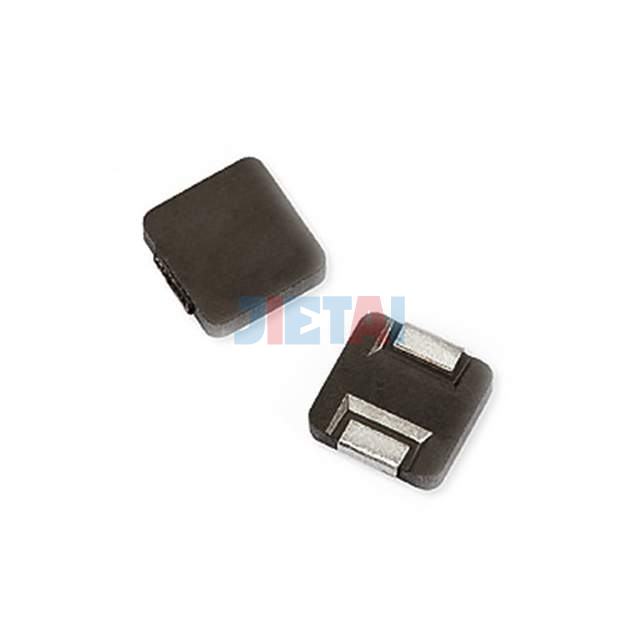

Images are for reference only
See Product Specifications

Product Specifications

Part Number MPIA4015V2-R22-R
Datasheet MPIA4015V2-R22-R datasheet
Description FIXED IND 220NH 11A 7.5 MOHM SMD
Manufacturer Eaton - Electronics Division
Series MPIA40-V2
Part Status Active
Type Wirewound
Material - Core Metal Composite
Inductance 220nH
Tolerance ±20%
Current Rating 11A
Current - Saturation 14A
Shielding Shielded
DC Resistance (DCR) 7.5 mOhm Max
Q @ Freq -
Frequency - Self Resonant 153MHz
Ratings AEC-Q200
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Supplier Device Package -
Size / Dimension 0.195" L x 0.165" W (4.95mm x 4.20mm)
Height - Seated (Max) 0.059" (1.50mm)
