Product Introduction
EKZE160ELL122MJ25S
- Part Number
- EKZE160ELL122MJ25S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 1200UF 20 16V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KZE
- Quantity
- 1480pcs Stock Available.

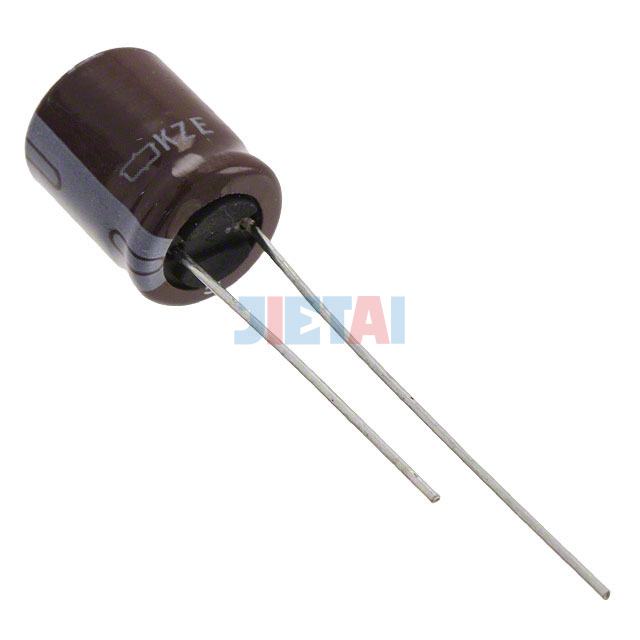

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKZE160ELL122MJ25S |
| Datasheet | EKZE160ELL122MJ25S datasheet |
| Description | CAP ALUM 1200UF 20 16V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KZE |
| Part Status | Active |
| Capacitance | 1200µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.29A @ 120Hz |
| Ripple Current @ High Frequency | 2.15A @ 100kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
