008383034000010

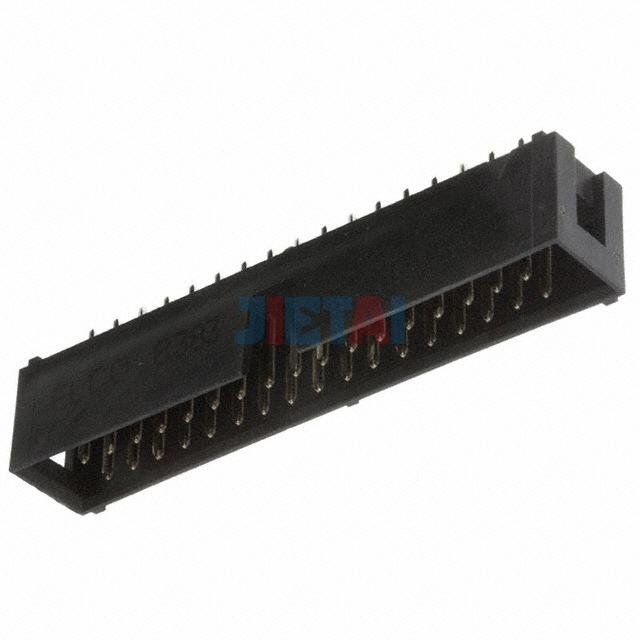

Images are for reference only
See Product Specifications

Part Number	008383034000010
Datasheet	008383034000010 datasheet
Description	CONN HEADER VERT 34POS 2.54MM
Manufacturer	AVX Corporation
Series	8383
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.242" (6.15mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	-
Insulation Height	0.376" (9.55mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Nickel
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Operating Temperature	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating	1A
Voltage Rating	350V
