Home / Products / Inductors, Coils, Chokes / Fixed Inductors / LB2518T6R8MV
Product Introduction
LB2518T6R8MV
- Part Number
- LB2518T6R8MV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 6.8UH 195MA 195 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LB
- Quantity
- 5pcs Stock Available.

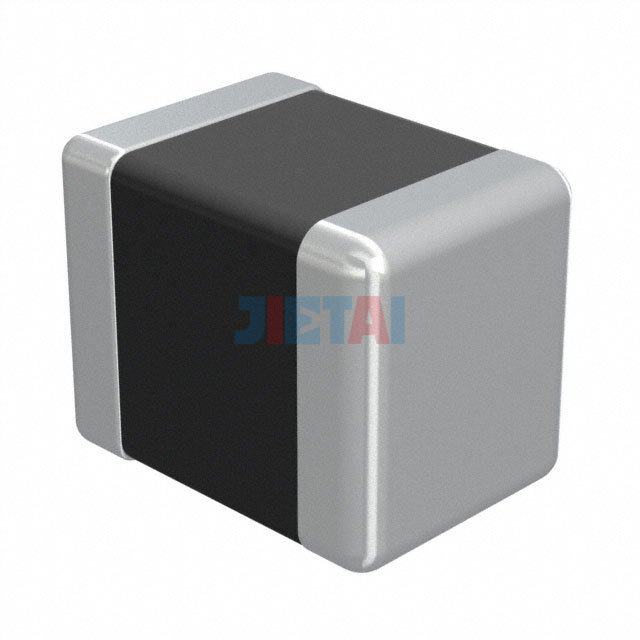

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LB2518T6R8MV |
| Datasheet | LB2518T6R8MV datasheet |
| Description | FIXED IND 6.8UH 195MA 195 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | LB |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8µH |
| Tolerance | ±20% |
| Current Rating | 195mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 195 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 38MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
