Product Introduction
NCV4275ADS33R4G
- Part Number
- NCV4275ADS33R4G
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC REG LINEAR 3.3V 450MA D2PAK-5
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q100
- Quantity
- 924pcs Stock Available.

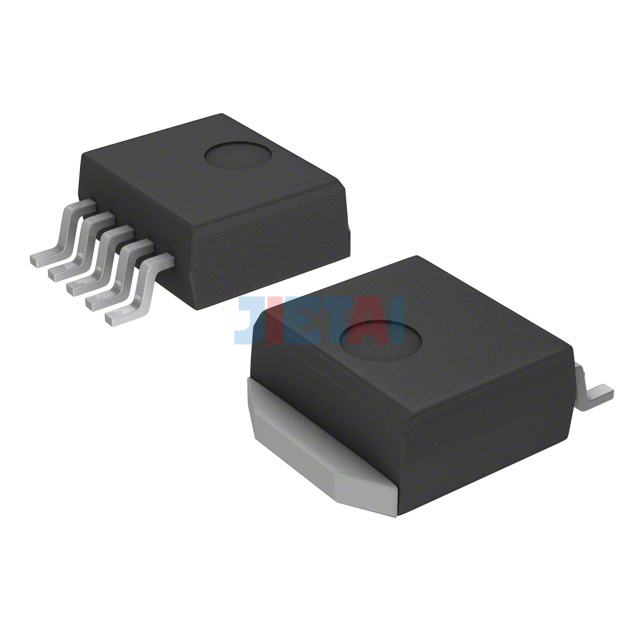

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NCV4275ADS33R4G |
| Datasheet | NCV4275ADS33R4G datasheet |
| Description | IC REG LINEAR 3.3V 450MA D2PAK-5 |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q100 |
| Part Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.17V @ 300mA |
| Current - Output | 450mA |
| Current - Quiescent (Iq) | 200µA |
| Current - Supply (Max) | 35mA |
| PSRR | 60dB (100Hz) |
| Control Features | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | D2PAK-5 |
