Product Introduction
478LBA063M2CE
- Part Number
- 478LBA063M2CE
- Manufacturer/Brand
- Illinois Capacitor
- Description
- CAP ALUM 4700UF 20 63V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LBA
- Quantity
- 295pcs Stock Available.

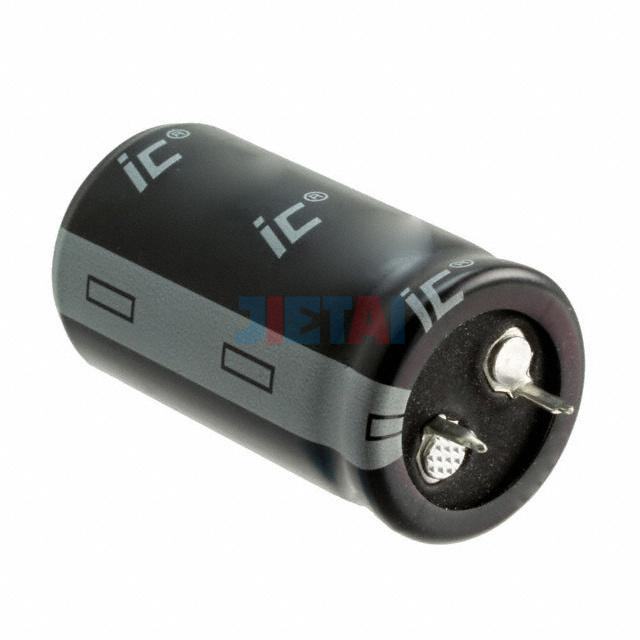

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 478LBA063M2CE |
| Datasheet | 478LBA063M2CE datasheet |
| Description | CAP ALUM 4700UF 20 63V SNAP |
| Manufacturer | Illinois Capacitor |
| Series | LBA |
| Part Status | Active |
| Capacitance | 4700µF |
| Tolerance | ±20% |
| Voltage - Rated | 63V |
| ESR (Equivalent Series Resistance) | 105.82 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.59A @ 120Hz |
| Ripple Current @ High Frequency | 4.4875A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
