Home / Products / Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets / 1356260000
Product Introduction
1356260000
- Part Number
- 1356260000
- Manufacturer/Brand
- Weidmüller
- Description
- TERM BLOCK PLUG 4POS STR 5.08MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Unimate BLA
- Quantity
- 329pcs Stock Available.

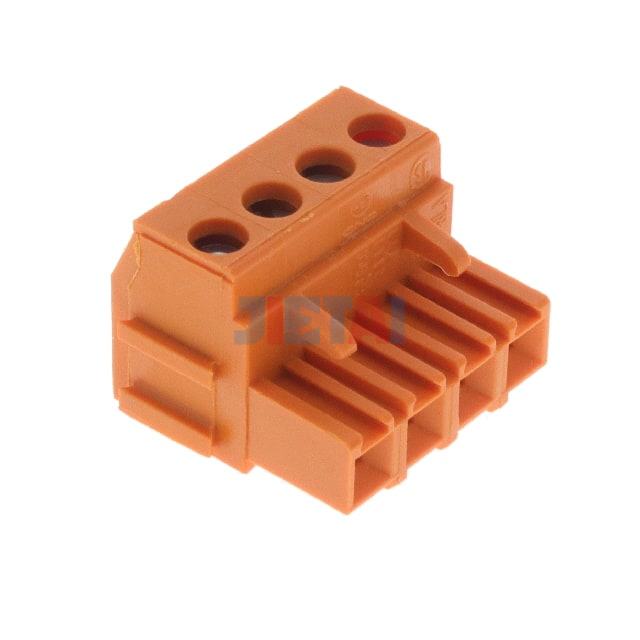

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1356260000 |
| Datasheet | 1356260000 datasheet |
| Description | TERM BLOCK PLUG 4POS STR 5.08MM |
| Manufacturer | Weidmüller |
| Series | Unimate BLA |
| Part Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 17.5A |
| Voltage - IEC | 400V |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Orange |
| Operating Temperature | -50°C ~ 120°C |
| Contact Mating Finish | Tin |
| Features | - |
