Product Introduction
IPC0018-S
- Part Number
- IPC0018-S
- Manufacturer/Brand
- Chip Quik Inc.
- Description
- QFN-28 STENCIL
- Category
- Solder Stencils, Templates
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Proto-Advantage IPC
- Quantity
- 2pcs Stock Available.

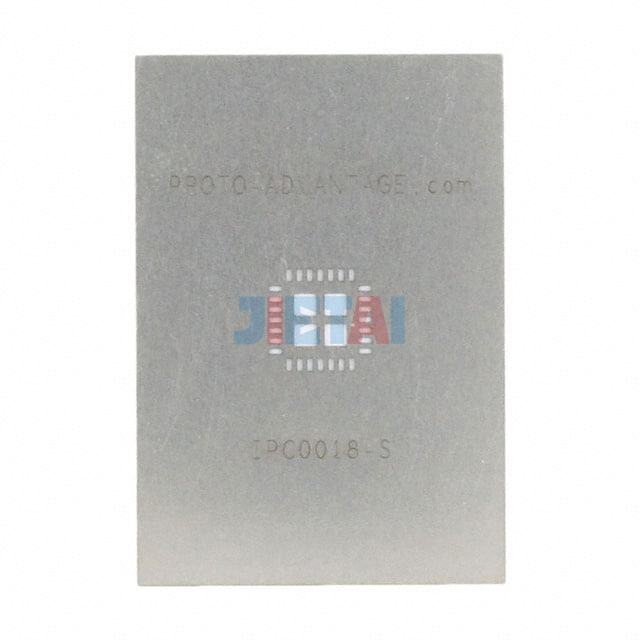

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | IPC0018-S |
| Datasheet | IPC0018-S datasheet |
| Description | QFN-28 STENCIL |
| Manufacturer | Chip Quik Inc. |
| Series | Proto-Advantage IPC |
| Part Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 28 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) |
| Inner Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Thermal Center Pad | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Material | Stainless Steel |
