Home / Products / Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins / 2-178496-1
Product Introduction
2-178496-1
- Part Number
- 2-178496-1
- Manufacturer/Brand
- TE Connectivity AMP Connectors
- Description
- CONN HEADER R/A 2POS 7.92MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Universal Power
- Quantity
- 8543pcs Stock Available.

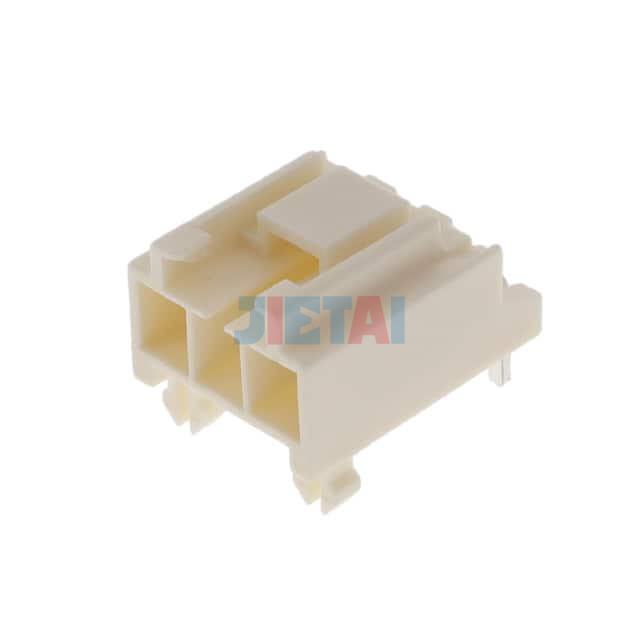

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 2-178496-1 |
| Datasheet | 2-178496-1 datasheet |
| Description | CONN HEADER R/A 2POS 7.92MM |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Universal Power |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.312" (7.92mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.376" (9.55mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Lock |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating | Varies by Wire Gauge |
| Voltage Rating | - |
