Product Introduction
NSQA12VAW5T2G
- Part Number
- NSQA12VAW5T2G
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 9V 23V SC88A
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 3601pcs Stock Available.

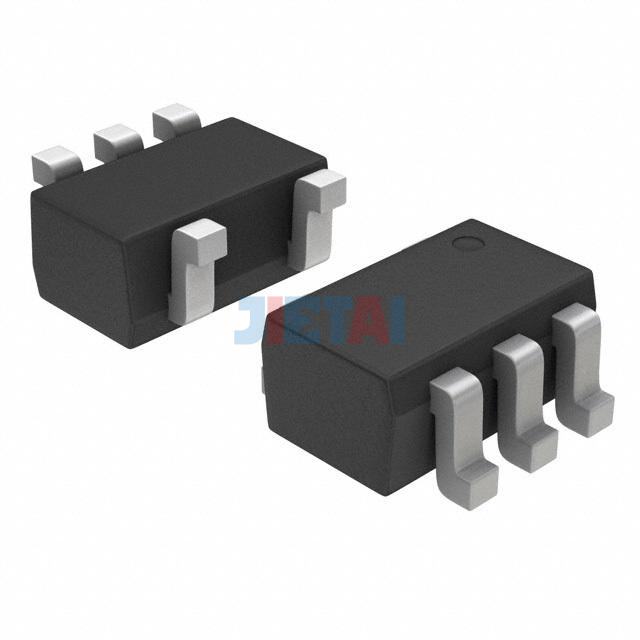

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NSQA12VAW5T2G |
| Datasheet | NSQA12VAW5T2G datasheet |
| Description | TVS DIODE 9V 23V SC88A |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Last Time Buy |
| Type | Zener |
| Unidirectional Channels | 4 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 9V |
| Voltage - Breakdown (Min) | 11.4V |
| Voltage - Clamping (Max) @ Ipp | 23V |
| Current - Peak Pulse (10/1000µs) | 900mA (8/20µs) |
| Power - Peak Pulse | 20W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 15pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
