Product Introduction

HCF1305-2R2-R

Part Number
HCF1305-2R2-R
Manufacturer/Brand
Eaton - Electronics Division
Description
FIXED IND 2.2UH 16.3A 3.1 MOHM
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
HCF1305
Quantity
16pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

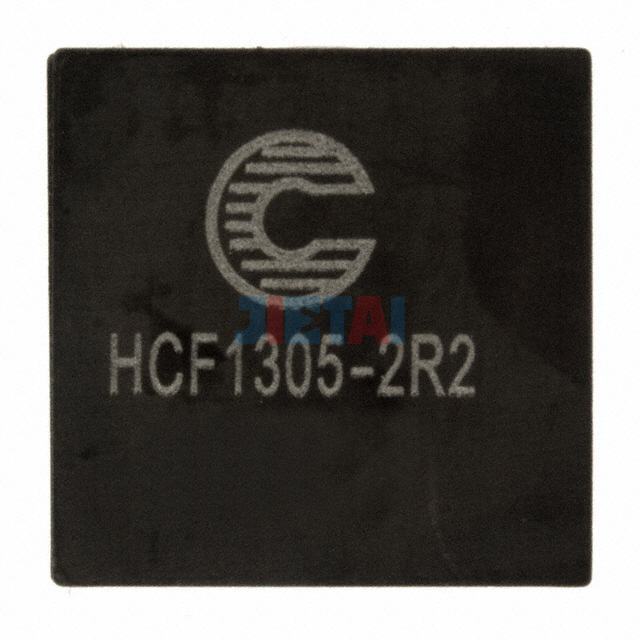

Images are for reference only
See Product Specifications

Product Specifications

Part Number HCF1305-2R2-R
Datasheet HCF1305-2R2-R datasheet
Description FIXED IND 2.2UH 16.3A 3.1 MOHM
Manufacturer Eaton - Electronics Division
Series HCF1305
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2µH
Tolerance ±20%
Current Rating 16.3A
Current - Saturation 15A
Shielding Unshielded
DC Resistance (DCR) 3.1 mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.197" (5.00mm)
