Home / Products / Integrated Circuits (ICs) / PMIC - Gate Drivers / ISL6700IBZ
Product Introduction
ISL6700IBZ
- Part Number
- ISL6700IBZ
- Manufacturer/Brand
- Renesas Electronics America Inc.
- Description
- IC DRIVER HALF BRIDGE 80V 8-SOIC
- Category
- PMIC - Gate Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 1442pcs Stock Available.

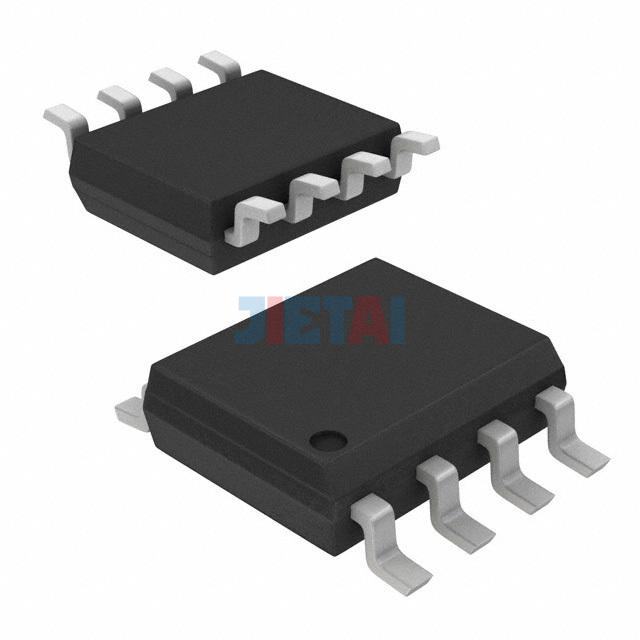

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ISL6700IBZ |
| Datasheet | ISL6700IBZ datasheet |
| Description | IC DRIVER HALF BRIDGE 80V 8-SOIC |
| Manufacturer | Renesas Electronics America Inc. |
| Series | - |
| Part Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80V |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
