Product Introduction
SDR1307-2R2ML
- Part Number
- SDR1307-2R2ML
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 2.2UH 9A 6 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SDR1307
- Quantity
- 507pcs Stock Available.

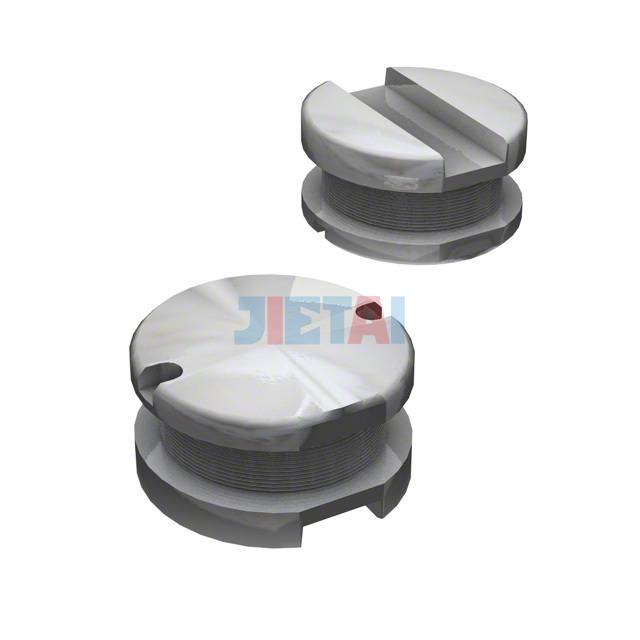

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SDR1307-2R2ML |
| Datasheet | SDR1307-2R2ML datasheet |
| Description | FIXED IND 2.2UH 9A 6 MOHM SMD |
| Manufacturer | Bourns Inc. |
| Series | SDR1307 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 9A |
| Current - Saturation | 18A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6 mOhm Max |
| Q @ Freq | 22 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.287" (7.30mm) |
