Product Introduction
ISL2110AR4Z-T
- Part Number
- ISL2110AR4Z-T
- Manufacturer/Brand
- Renesas Electronics America Inc.
- Description
- IC MSFT DVR HALF-BRG 100V 12-DFN
- Category
- PMIC - Gate Drivers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6197pcs Stock Available.

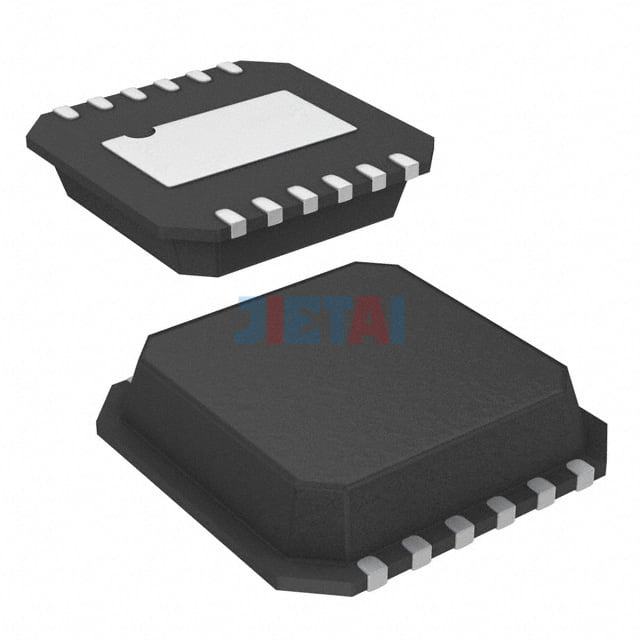

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ISL2110AR4Z-T |
| Datasheet | ISL2110AR4Z-T datasheet |
| Description | IC MSFT DVR HALF-BRG 100V 12-DFN |
| Manufacturer | Renesas Electronics America Inc. |
| Series | - |
| Part Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 3.7V, 7.4V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114V |
| Rise / Fall Time (Typ) | 9ns, 7.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) |
