Product Introduction
CE2S101C02
- Part Number
- CE2S101C02
- Manufacturer/Brand
- JAE Electronics
- Description
- CONN HEADER R/A 1POS
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CE2
- Quantity
- 14pcs Stock Available.

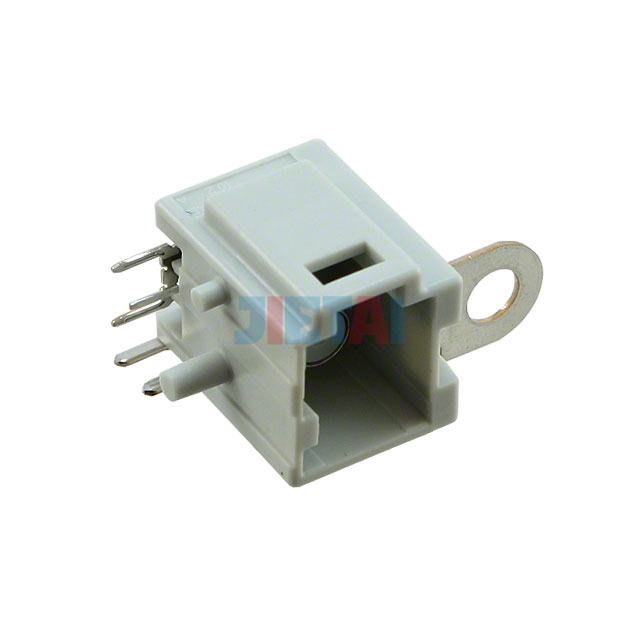

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CE2S101C02 |
| Datasheet | CE2S101C02 datasheet |
| Description | CONN HEADER R/A 1POS |
| Manufacturer | JAE Electronics |
| Series | CE2 |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket, Coaxial |
| Pitch - Mating | - |
| Number of Positions | 1 |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.451" (11.45mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold, Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Bracket |
| Operating Temperature | -30°C ~ 70°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating | - |
| Voltage Rating | - |
