Product Introduction
LHL08NB101K
- Part Number
- LHL08NB101K
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 100UH 790MA 320 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LH, L Type
- Quantity
- 5pcs Stock Available.

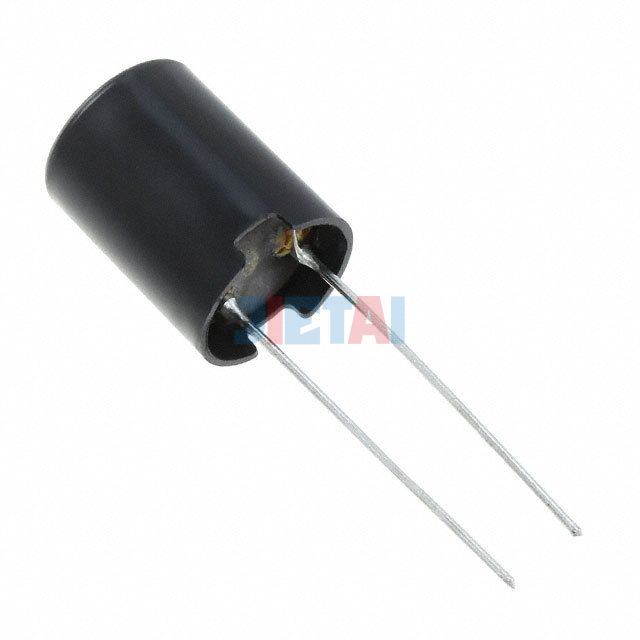

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LHL08NB101K |
| Datasheet | LHL08NB101K datasheet |
| Description | FIXED IND 100UH 790MA 320 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Part Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 100µH |
| Tolerance | ±10% |
| Current Rating | 790mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 320 mOhm Max |
| Q @ Freq | 25 @ 796kHz |
| Frequency - Self Resonant | 5.7MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 796kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
