Product Introduction
M80-MV311M2-06
- Part Number
- M80-MV311M2-06
- Manufacturer/Brand
- Harwin Inc.
- Description
- CONN HEADER VERT 6POS 4MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Datamate Coax
- Quantity
- 178pcs Stock Available.

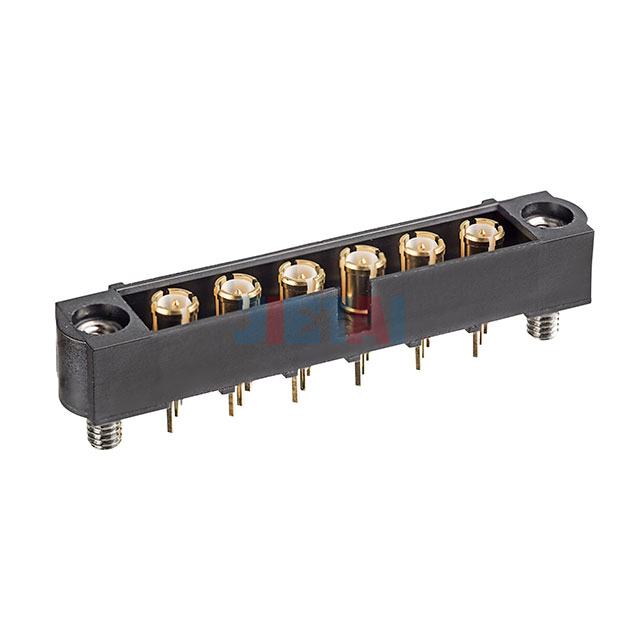

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M80-MV311M2-06 |
| Datasheet | M80-MV311M2-06 datasheet |
| Description | CONN HEADER VERT 6POS 4MM |
| Manufacturer | Harwin Inc. |
| Series | Datamate Coax |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin, Coaxial |
| Pitch - Mating | 0.157" (4.00mm) |
| Number of Positions | 6 (Coax) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.177" (4.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Mating Flange, Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | - |
| Voltage Rating | - |
