Product Introduction
EEE-TP1K681M
- Part Number
- EEE-TP1K681M
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- FIXED ALUMINUM ELECTROLYTIC CAPA
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TP
- Quantity
- 1384pcs Stock Available.

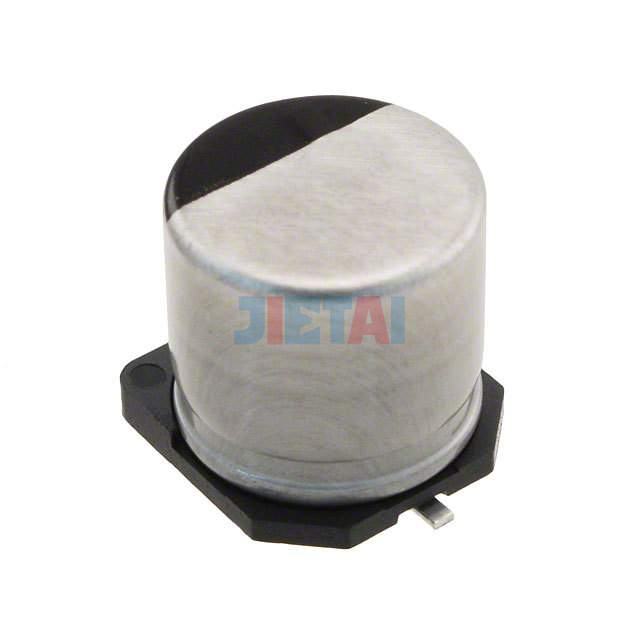

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EEE-TP1K681M |
| Datasheet | EEE-TP1K681M datasheet |
| Description | FIXED ALUMINUM ELECTROLYTIC CAPA |
| Manufacturer | Panasonic Electronic Components |
| Series | TP |
| Part Status | Active |
| Capacitance | 680µF |
| Tolerance | ±20% |
| Voltage - Rated | 80V |
| ESR (Equivalent Series Resistance) | 68 mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.95A @ 120Hz |
| Ripple Current @ High Frequency | 2.6A @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
