Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 334SML050MD4
Product Introduction

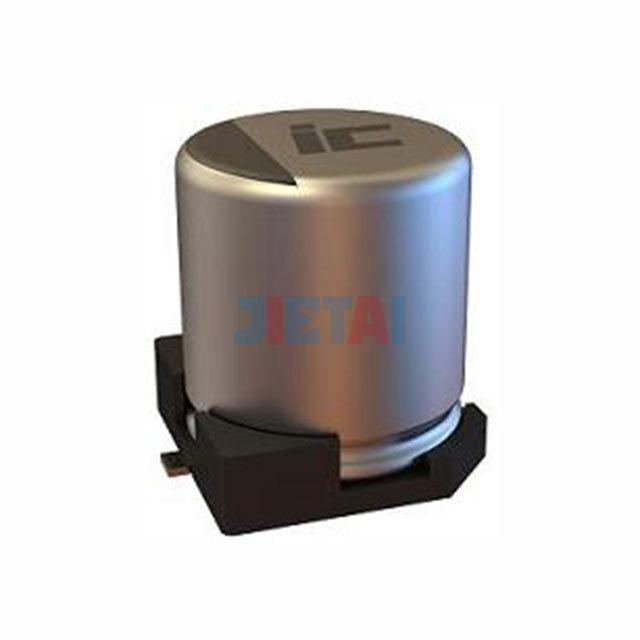

334SML050MD4
- Part Number
- 334SML050MD4
- Manufacturer/Brand
- Illinois Capacitor
- Description
- CAP ALUM 0.33UF 20 50V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SML
- Quantity
- 22pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 334SML050MD4 |
| Datasheet | 334SML050MD4 datasheet |
| Description | CAP ALUM 0.33UF 20 50V SMD |
| Manufacturer | Illinois Capacitor |
| Series | SML |
| Part Status | Active |
| Capacitance | 0.33µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | 602.86 Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.7mA @ 120Hz |
| Ripple Current @ High Frequency | 8.55mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
