Product Introduction
TPS54561DPRR
- Part Number
- TPS54561DPRR
- Manufacturer/Brand
- Texas Instruments
- Description
- IC REG BCK SPLIT RAIL ADJ 10WSON
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Eco-Mode™
- Quantity
- 12116pcs Stock Available.

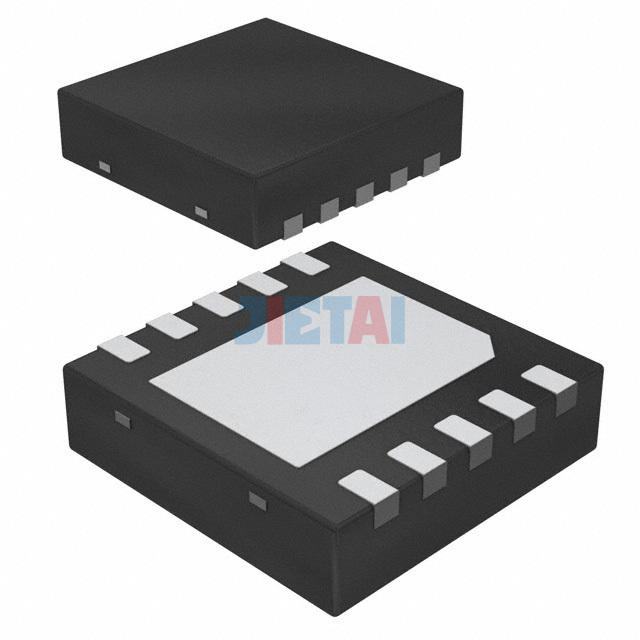

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TPS54561DPRR |
| Description | IC REG BCK SPLIT RAIL ADJ 10WSON |
| Manufacturer | Texas Instruments |
| Series | Eco-Mode™ |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Split Rail |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 59V |
| Current - Output | 5A |
| Frequency - Switching | 100kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) |
