Product Introduction

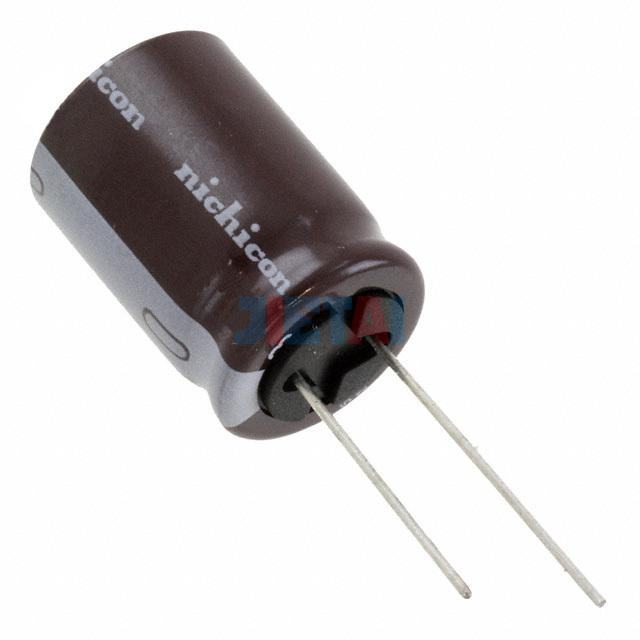

UCS2G680MHD
- Part Number
- UCS2G680MHD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 68UF 20 400V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCS
- Quantity
- 1048pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCS2G680MHD |
| Datasheet | UCS2G680MHD datasheet |
| Description | CAP ALUM 68UF 20 400V RADIAL |
| Manufacturer | Nichicon |
| Series | UCS |
| Part Status | Active |
| Capacitance | 68µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 735mA @ 120Hz |
| Ripple Current @ High Frequency | 1.47A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
