Product Introduction
8-338069-0
- Part Number
- 8-338069-0
- Manufacturer/Brand
- TE Connectivity AMP Connectors
- Description
- CONN RCPT 10POS 0.1 TIN SMD
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Micro-MaTch
- Quantity
- 1079pcs Stock Available.

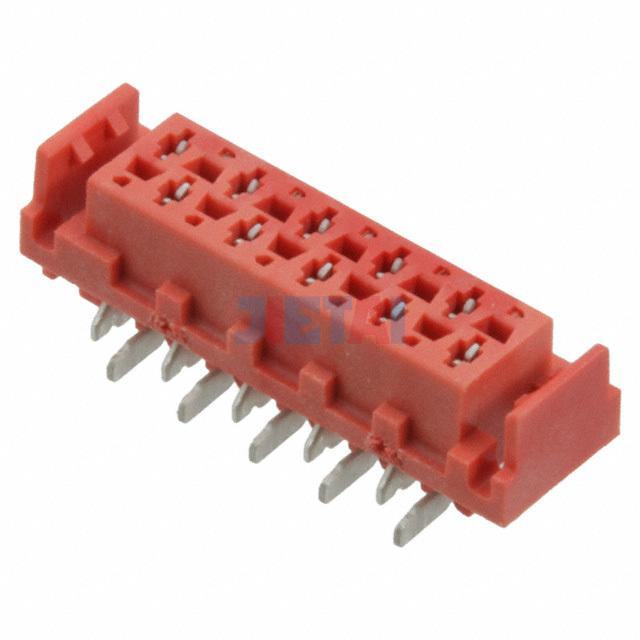

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 8-338069-0 |
| Datasheet | 8-338069-0 datasheet |
| Description | CONN RCPT 10POS 0.1 TIN SMD |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Micro-MaTch |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Red |
| Insulation Height | 0.209" (5.30mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating | - |
| Voltage Rating | 100VDC |
