Product Introduction
LQH3NPN3R3MMEL
- Part Number
- LQH3NPN3R3MMEL
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 3.3UH 1.9A 100.8 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH3
- Quantity
- 24186pcs Stock Available.

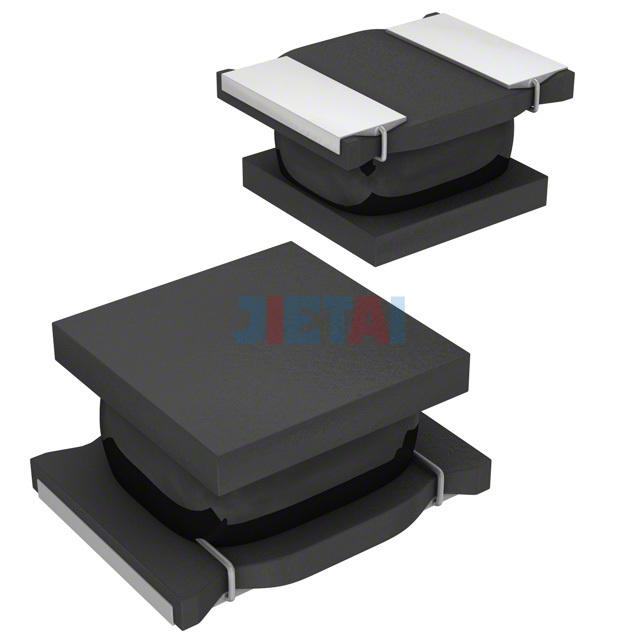

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH3NPN3R3MMEL |
| Datasheet | LQH3NPN3R3MMEL datasheet |
| Description | FIXED IND 3.3UH 1.9A 100.8 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQH3 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3µH |
| Tolerance | ±20% |
| Current Rating | 1.15A |
| Current - Saturation | 1.52A |
| Shielding | Shielded |
| DC Resistance (DCR) | 100.8 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 1212 (3030 Metric) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
