Product Introduction
EMKB401ADA4R7MJA0G
- Part Number
- EMKB401ADA4R7MJA0G
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 4.7UF 20 400V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Alchip™- MKB
- Quantity
- 16pcs Stock Available.

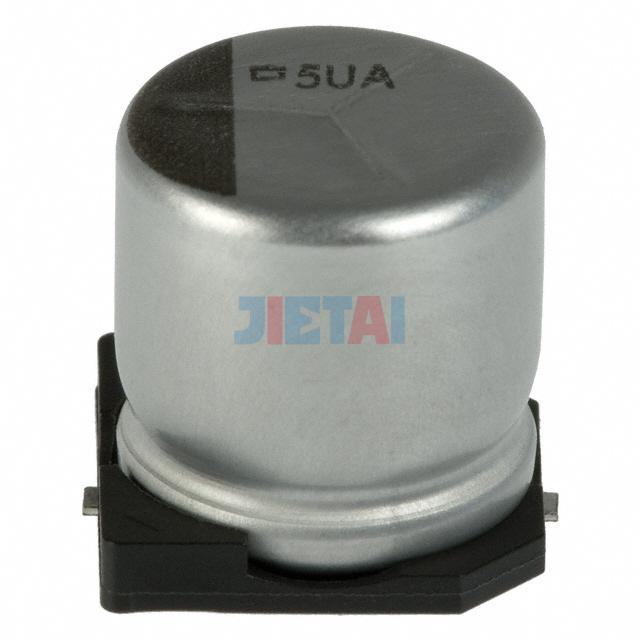

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EMKB401ADA4R7MJA0G |
| Datasheet | EMKB401ADA4R7MJA0G datasheet |
| Description | CAP ALUM 4.7UF 20 400V SMD |
| Manufacturer | United Chemi-Con |
| Series | Alchip™- MKB |
| Part Status | Active |
| Capacitance | 4.7µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | 10 Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39mA @ 120Hz |
| Ripple Current @ High Frequency | 58.5mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
