Product Introduction
0313874017
- Part Number
- 0313874017
- Manufacturer/Brand
- Molex
- Description
- CONN HEADER VERT 80POS 2.54MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MX123 31387
- Quantity
- 431pcs Stock Available.

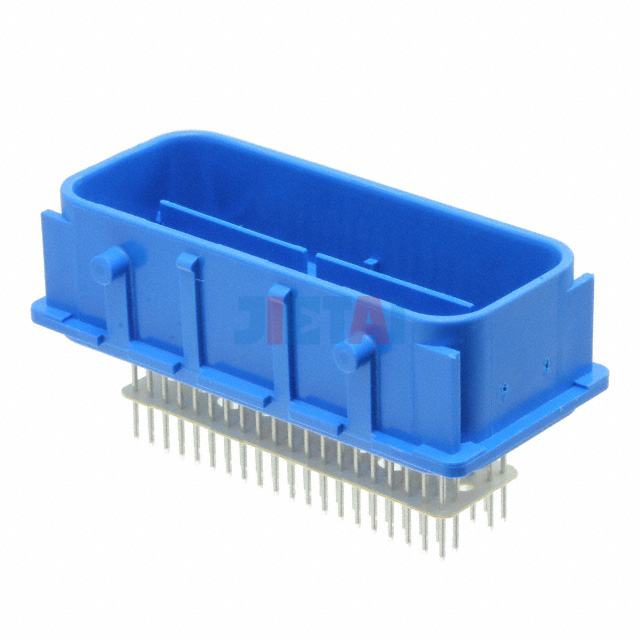

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 0313874017 |
| Datasheet | 0313874017 datasheet |
| Description | CONN HEADER VERT 80POS 2.54MM |
| Manufacturer | Molex |
| Series | MX123 31387 |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 80 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.256" (6.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.848" (21.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 74.8µin (1.90µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Blue |
| Current Rating | - |
| Voltage Rating | - |
