Product Introduction
CTX20-1-52LP-R
- Part Number
- CTX20-1-52LP-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 20UH 1.8A 82.9 MOHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CTX
- Quantity
- 13pcs Stock Available.

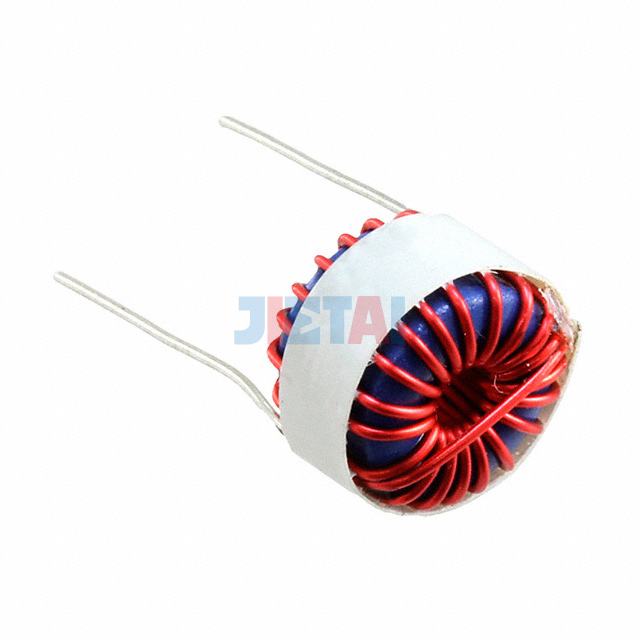

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CTX20-1-52LP-R |
| Datasheet | CTX20-1-52LP-R datasheet |
| Description | FIXED IND 20UH 1.8A 82.9 MOHM TH |
| Manufacturer | Eaton - Electronics Division |
| Series | CTX |
| Part Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 20µH |
| Tolerance | ±20% |
| Current Rating | 1.8A |
| Current - Saturation | 2.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 82.9 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.358" Dia (9.10mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
