Product Introduction
LP38693SDX-2.5
- Part Number
- LP38693SDX-2.5
- Manufacturer/Brand
- Texas Instruments
- Description
- IC REG LINEAR 2.5V 500MA 6WSON
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q100
- Quantity
- 5442pcs Stock Available.

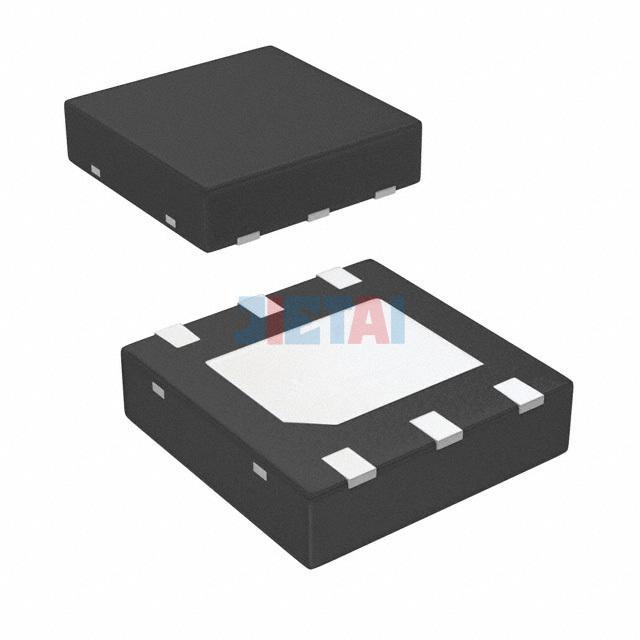

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LP38693SDX-2.5 |
| Description | IC REG LINEAR 2.5V 500MA 6WSON |
| Manufacturer | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.73V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55µA |
| Current - Supply (Max) | 100µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
