Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UFG2A331MHM
Product Introduction
UFG2A331MHM
- Part Number
- UFG2A331MHM
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 330UF 20 100V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UFG
- Quantity
- 213pcs Stock Available.

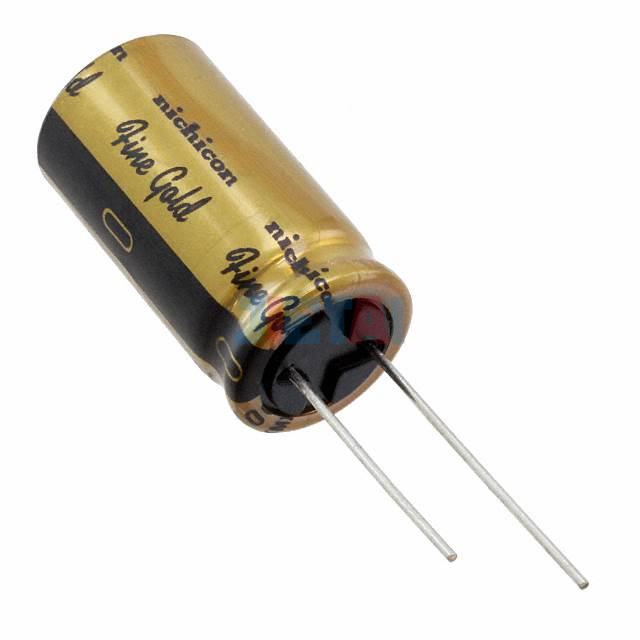

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UFG2A331MHM |
| Datasheet | UFG2A331MHM datasheet |
| Description | CAP ALUM 330UF 20 100V RADIAL |
| Manufacturer | Nichicon |
| Series | UFG |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 734mA @ 120Hz |
| Ripple Current @ High Frequency | 1.101A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
