Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 180MXG820MEFCSN22X40
Product Introduction
180MXG820MEFCSN22X40
- Part Number
- 180MXG820MEFCSN22X40
- Manufacturer/Brand
- Rubycon
- Description
- CAP ALUM 820UF 20 180V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MXG
- Quantity
- 46pcs Stock Available.

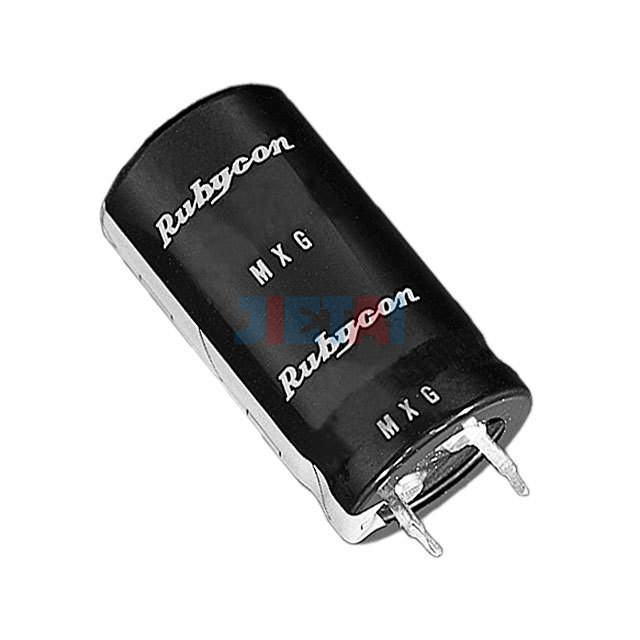

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 180MXG820MEFCSN22X40 |
| Datasheet | 180MXG820MEFCSN22X40 datasheet |
| Description | CAP ALUM 820UF 20 180V SNAP |
| Manufacturer | Rubycon |
| Series | MXG |
| Part Status | Active |
| Capacitance | 820µF |
| Tolerance | ±20% |
| Voltage - Rated | 180V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.27A @ 120Hz |
| Ripple Current @ High Frequency | 3.405A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
