Product Introduction
R5F563TBBDFB#V1
- Part Number
- R5F563TBBDFB#V1
- Manufacturer/Brand
- Renesas Electronics America
- Description
- IC MCU 32BIT 256KB FLASH 144LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RX600
- Quantity
- 20pcs Stock Available.

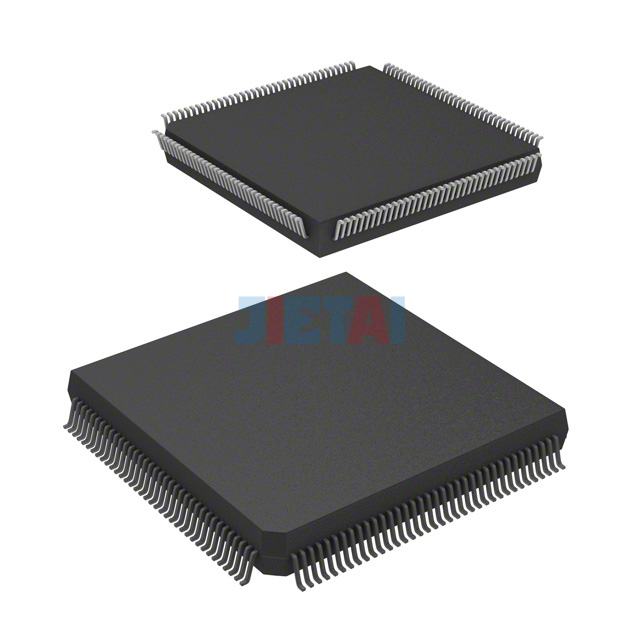

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | R5F563TBBDFB#V1 |
| Datasheet | R5F563TBBDFB#V1 datasheet |
| Description | IC MCU 32BIT 256KB FLASH 144LQFP |
| Manufacturer | Renesas Electronics America |
| Series | RX600 |
| Part Status | Active |
| Core Processor | RX |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 81 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 20x10b, 8x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-LQFP |
| Base Part Number | 144-LQFP (20x20) |
