Product Introduction

UP3B-220-R

Part Number
UP3B-220-R
Manufacturer/Brand
Eaton - Electronics Division
Description
FIXED IND 22UH 3.1A 49 MOHM SMD
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
UNI-PAC™
Quantity
16pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

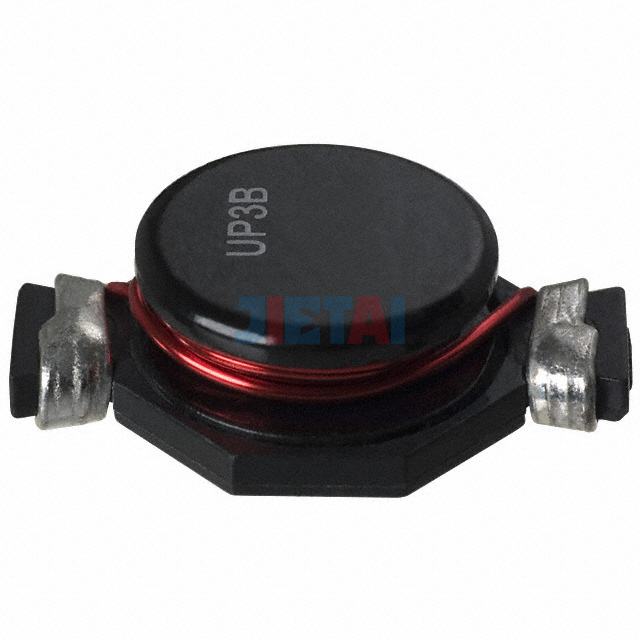

Images are for reference only
See Product Specifications

Product Specifications

Part Number UP3B-220-R
Datasheet UP3B-220-R datasheet
Description FIXED IND 22UH 3.1A 49 MOHM SMD
Manufacturer Eaton - Electronics Division
Series UNI-PAC™
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22µH
Tolerance ±20%
Current Rating 3.1A
Current - Saturation 3.7A
Shielding Unshielded
DC Resistance (DCR) 49 mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.760" L x 0.520" W (19.30mm x 13.21mm)
Height - Seated (Max) 0.268" (6.80mm)
