Product Introduction
LQP03TG39NJ02D
- Part Number
- LQP03TG39NJ02D
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 39NH 110MA 4.6 OHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQP03
- Quantity
- 9pcs Stock Available.

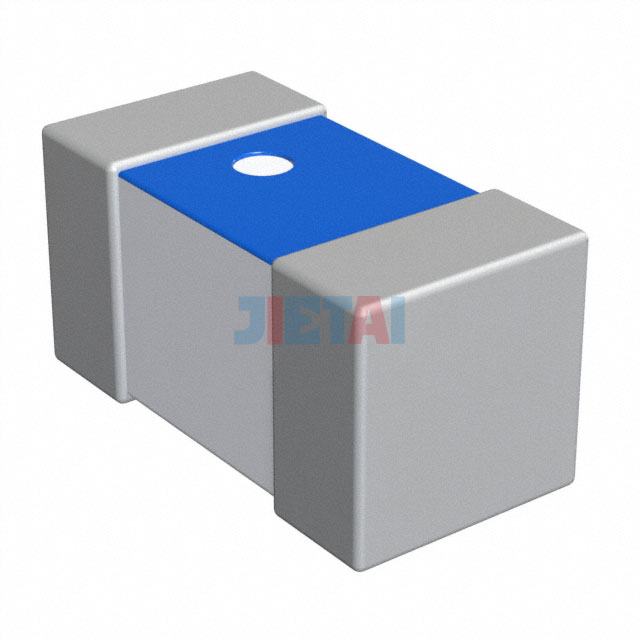

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQP03TG39NJ02D |
| Datasheet | LQP03TG39NJ02D datasheet |
| Description | FIXED IND 39NH 110MA 4.6 OHM SMD |
| Manufacturer | Murata Electronics North America |
| Series | LQP03 |
| Part Status | Active |
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 39nH |
| Tolerance | ±5% |
| Current Rating | 110mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.6 Ohm Max |
| Q @ Freq | 7 @ 300MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 300MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
