Product Introduction
UP2-1R0-R
- Part Number
- UP2-1R0-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 1UH 9A 8.1 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UNI-PAC™ 2
- Quantity
- 16pcs Stock Available.

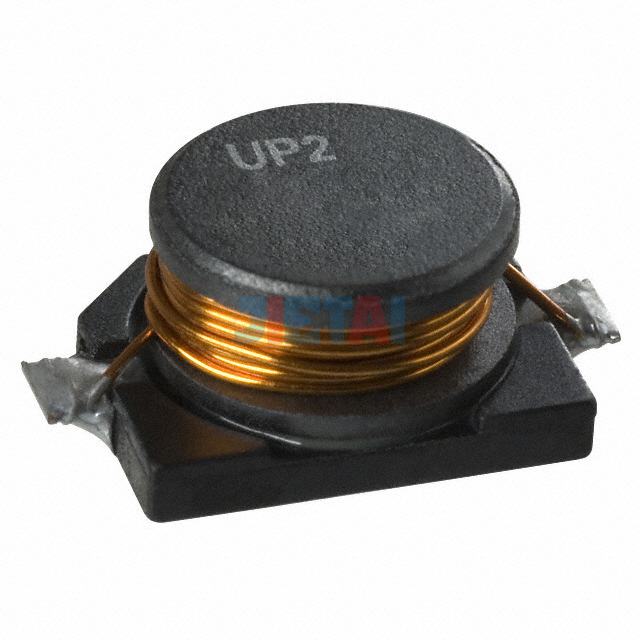

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UP2-1R0-R |
| Datasheet | UP2-1R0-R datasheet |
| Description | FIXED IND 1UH 9A 8.1 MOHM SMD |
| Manufacturer | Eaton - Electronics Division |
| Series | UNI-PAC™ 2 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1µH |
| Tolerance | ±20% |
| Current Rating | 9A |
| Current - Saturation | 9.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.1 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.541" L x 0.345" W (13.74mm x 8.76mm) |
| Height - Seated (Max) | 0.231" (5.86mm) |
