Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EKYB800ELL471MK30S
Product Introduction
EKYB800ELL471MK30S
- Part Number
- EKYB800ELL471MK30S
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 470UF 20 80V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KYB
- Quantity
- 1283pcs Stock Available.

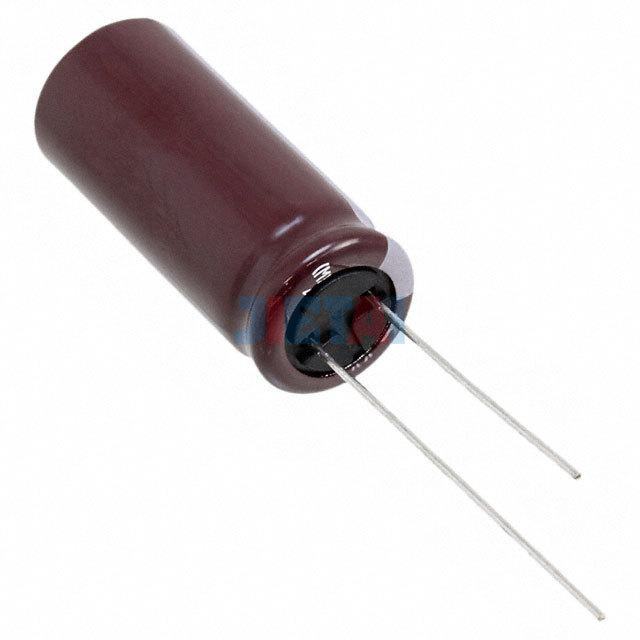

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKYB800ELL471MK30S |
| Datasheet | EKYB800ELL471MK30S datasheet |
| Description | CAP ALUM 470UF 20 80V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KYB |
| Part Status | Active |
| Capacitance | 470µF |
| Tolerance | ±20% |
| Voltage - Rated | 80V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 975mA @ 120Hz |
| Ripple Current @ High Frequency | 1.95A @ 100kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
