Product Introduction
PT7747C
- Part Number
- PT7747C
- Manufacturer/Brand
- Texas Instruments
- Description
- DC DC CONVERTER 20-28V 15A
- Category
- DC DC Converters
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PT7740
- Quantity
- 9917pcs Stock Available.

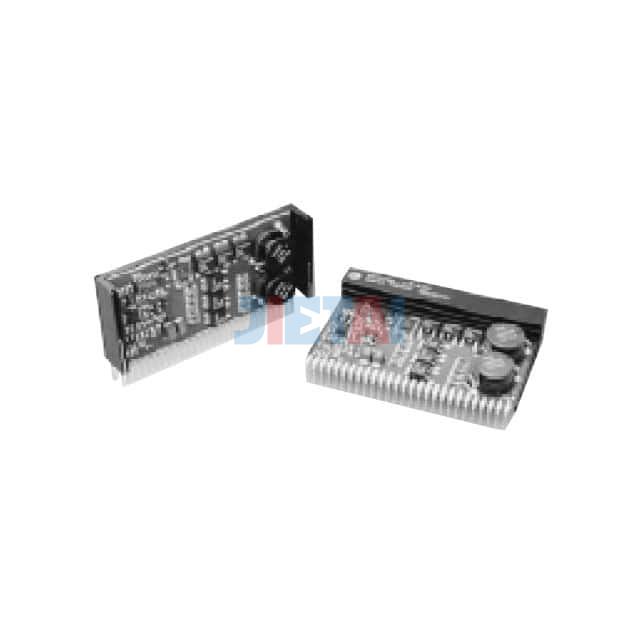

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PT7747C |
| Description | DC DC CONVERTER 20-28V 15A |
| Manufacturer | Texas Instruments |
| Series | PT7740 |
| Part Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 28V |
| Voltage - Output 1 | 20 ~ 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | 0°C ~ 85°C |
| Efficiency | 90% |
| Mounting Type | Surface Mount |
| Package / Case | 27-SMD Module |
| Size / Dimension | 2.81" L x 1.78" W x 0.49" H (71.4mm x 45.2mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
