Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EEE-FK1C101SR
Product Introduction
EEE-FK1C101SR
- Part Number
- EEE-FK1C101SR
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- SMD AL ELECTROLYTIC 16VDC 100U
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- FKS
- Quantity
- 5193pcs Stock Available.

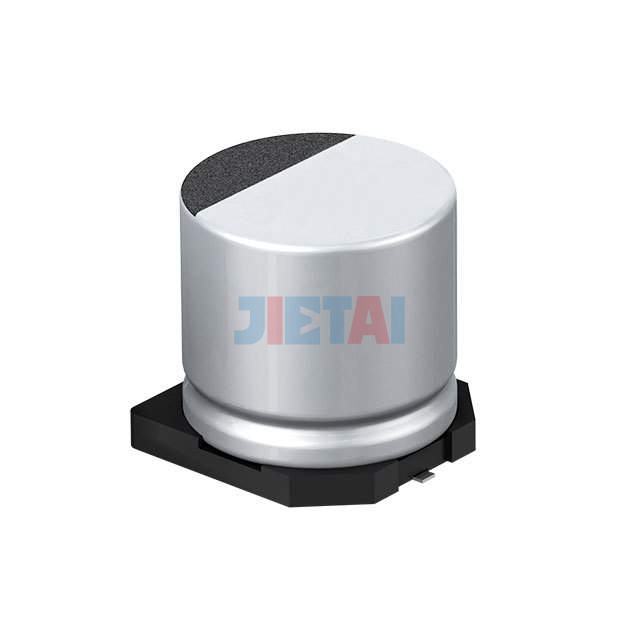

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EEE-FK1C101SR |
| Datasheet | EEE-FK1C101SR datasheet |
| Description | SMD AL ELECTROLYTIC 16VDC 100U |
| Manufacturer | Panasonic Electronic Components |
| Series | FKS |
| Part Status | Active |
| Capacitance | 100µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | 700 mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 104mA @ 120Hz |
| Ripple Current @ High Frequency | 160mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
