Product Introduction
77F680J
- Part Number
- 77F680J
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 68UH 305MA 1.47 OHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 77F
- Quantity
- 2900pcs Stock Available.

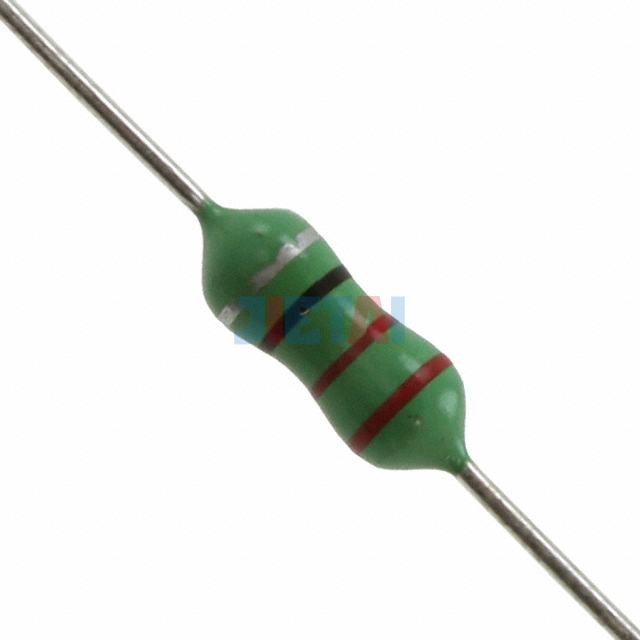

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 77F680J |
| Datasheet | 77F680J datasheet |
| Description | FIXED IND 68UH 305MA 1.47 OHM TH |
| Manufacturer | Bourns Inc. |
| Series | 77F |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68µH |
| Tolerance | ±5% |
| Current Rating | 305mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.47 Ohm Max |
| Q @ Freq | 40 @ 2.52MHz |
| Frequency - Self Resonant | 5.7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - |
