Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EEE-FP1V331AP
Product Introduction
EEE-FP1V331AP
- Part Number
- EEE-FP1V331AP
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- CAP ALUM 330UF 20 35V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- FP
- Quantity
- 58110pcs Stock Available.

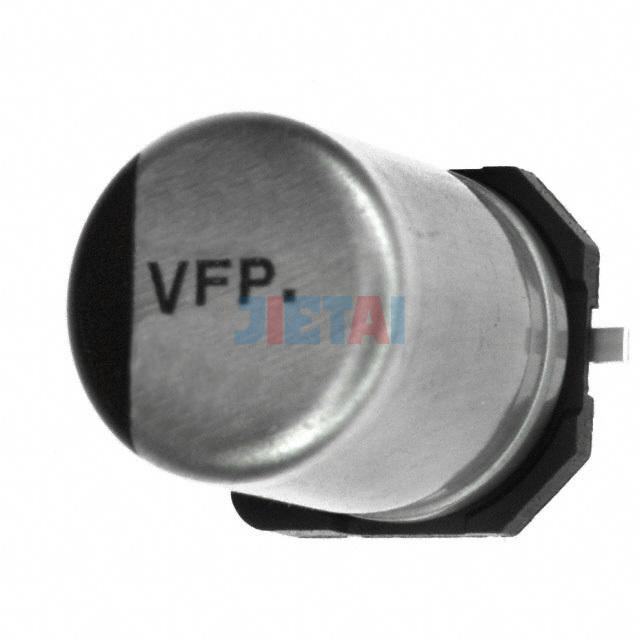

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EEE-FP1V331AP |
| Datasheet | EEE-FP1V331AP datasheet |
| Description | CAP ALUM 330UF 20 35V SMD |
| Manufacturer | Panasonic Electronic Components |
| Series | FP |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 60 mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 773.5mA @ 120Hz |
| Ripple Current @ High Frequency | 1.19A @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
